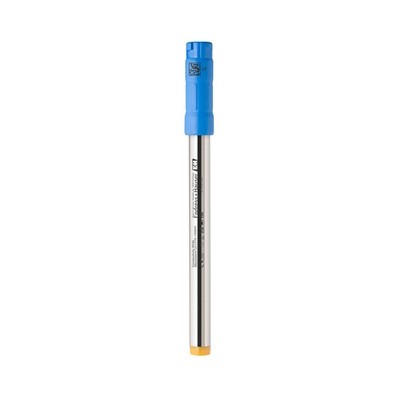

Digital conductivity sensor Memosens CLL47E

Digital conductivity sensor Memosens CLL47E

Измеряемый параметр:Проводимость
Описание Тех. характеристики Запчасти Опросный лист Заказать

Область применения

Memosens CLL47E is the four-electrode conductivity sensor for random sampling and measurements in the laboratory. It merges easy handling with plug and play system with effortless cleaning thanks to the seamless design. With its platinum electrodes and wide measuring range, a large variety of samples can be covered while delivering reliable measurements right at the measuring point.

Memosens CLL47E is suited for:​

  • Check of on-line measuring loops
  • Analysis of grab samples (on-site as well as in the laboratory) ​
  • Measurement at process points where regular checks are recommended​

In the following applications: ​

  • Drinking water
  • Cooling water
  • Wastewater ​
  • Process media analysis, e.g. cleaning solutions​


Wide range of measurement allows for analysis of many different samples

Precise adjustment and reliable measurement with a quality cerificate stating individual cell constant

Easy to clean thanks to seamless design

Solid platinum electrodes provide easy maintenance and long lifetime

Benefit from Memosens 2.0 technology with implemented cell constante, true plug and play and traceable calibration history

Integrated temperature sensor for automatic temperature compensation

Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history

Принцип измерения
Кондуктивные датчики

Measurements where a broad conductivity measurement range in one system is needed

Digital Memsoens 2.0 conductive conductivity sensor with four platinum electrodes for a broad measuring range.

Диапазон измерения
5 μS/cm to 200 mS/cm

Stainless steel, ceramic, platinum

Габаритные размеры
Diameter: 12 mm (0.47 inch)
Shaft length: 120 mm (4.72 inch)

Рабочая температура
0 to 100 °C (32 to 212 °F)

Рабочее давление
1 bar, not intended for continuous measurement in process

Датчик температуры

Inductive, digital connection head with Memosens 2.0 technology

Степень защиты
